Distribution Cable

China Distribution Cable supplier

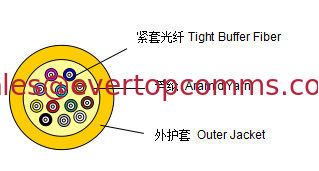

Large Image :  Distribution Cable

Product Details:

Place of Origin: Ningbo of China

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

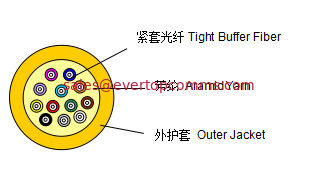

Distribution Cable

Excellent characteristics, content with different requirement indoor, Include: buildings,lift well,FTTD. It can supply bandwidth, transmission speech,data,TV and image. Characteristic: small diameter,light

weight,flexibility. So it Is easy to installation,maintenance and manage.

1.Characteristic

         .Excellent stripping performance of tight buffer fiber

          Cable diameter and bending radius small,

        . It can installation freely in narrow room.



2.Geometrical Characteristics

Distribution Cable Type

2

4

6

8

12

24

Distribution Cable Diameter(mm)

5.00

5.10

5.30

6.00

6.60

8.50

Distribution Cable Weight(kg/km)

20

20

22

25

28

50

TBF Diameter(μm)

900±50



3.Mechanical Characteristics



Max Load(N)

 Long Term

130

130

130

130

130

200

Short Term

440

440

440

440

440

660



Bending Radius(CM)

 Dynamic

20×D (D: Cable Diameter)

Static

10×D (D: Cable Diameter)



4.Fiber

 Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125



5.Transmission Characteristics



 SMF

50/125

62.5/125



1310/1550(nm)

850/1300(nm)

850/1300(nm)

 Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

 AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

 Min Bandwidth(MHz·km)

——

400/400

160/500



6.Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
