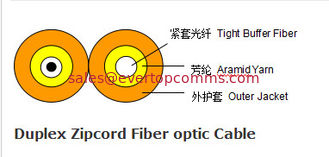

Duplex Zipcord Fiber optic Cable

China Duplex Zipcord Fiber optic Cable supplier

Large Image :  Duplex Zipcord Fiber optic Cable

Product Details:

Place of Origin: Ningbo of China

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

Duplex Zipcord Fiber optic Cable

Duplex Zipcord Fiber optic Cable

1.Characteristic

.900μm or 600μm tight buffer fiber, aramid yarn,

            .flame-retardant jacket

            .Excellent stripping performance of tight buffer fiber

            .Suited to SM fiber and MM fiber (50μm and 62.5μm)





2.Geometrical Characteristics

Duplex Cable Type

φ3.0

φ2.0

φ1.8

φ1.6

Duplex Cable Diameter(mm)

2.85/5.80

1.95/4.00

1.80/3.70

1.75/3.60

Duplex Cable Weight(kg/km)

14

8

7.8

7.6

TBF Diameter(μm)

900±50

600±50



3. Mechanical Characteristics



Max Load(N)

 Long Term

100

100

100

50

Short Term

200

200

200

100



Bending Radius(CM)

Dynamic

20×H  (H: Cable Axis)

 Static

10×H  (H: Cable Axis)



4.Fiber

Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125



5. Transmission Characteristics



SMF

50/125

62.5/125



1310/1550(nm)

850/1300(nm)

850/1300(nm)

 Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

 Min Bandwidth(MHz·km)

——

400/400

160/500



  6.Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
