Break-out Fiber Optic CableⅡ

China Break-out Fiber Optic CableⅡ supplier

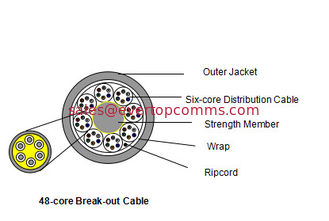

Large Image :  Break-out Fiber Optic CableⅡ

Product Details:

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description





Break-out Fiber Optic CableⅡ

1.Geometrical Characteristics

Break-out Cable Type

48

72

48

72

144

Subunit Fiber Number

6

6

12

12

12

Cable Diameter(mm)

18.5

24

16

20

26

Cable Weight(kg/km)

310

530

220

293

447

TBF Diameter(μm)

900±50



2.Mechanical Characteristics



Max Load(N)

 Long Term

200

 Short Term

600



Bending Radius(CM)

 Dynamic

20×D  (D: Cable Diameter)

 Static

10×D  (D: Cable Diameter)



3.Fiber

 Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125



4.Transmission Characteristics



 SMF

50/125

62.5/125



1310/1550(nm)

850/1300(nm)

850/1300(nm)

 Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

 Min Bandwidth(MHz·km)

——

400/400

160/500



5.Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
