Four-core Relief fiber optic Cable

I'm Online Chat Now

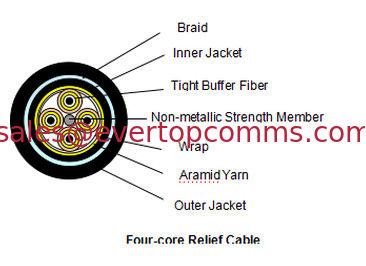

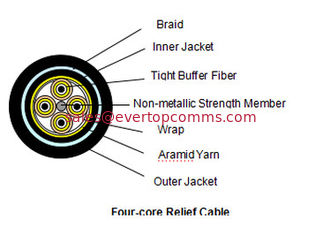

Four-core Relief fiber optic Cable

China Four-core Relief fiber optic Cable supplier

Large Image :  Four-core Relief fiber optic Cable

Product Details:

Place of Origin: Ningbo of China
Brand Name: EVERTOPCOMMS

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description
Number Of Conductors: 4

Four-core Relief fiber optic Cable

Characteristic:

Aramid yarn provide mechanical strength with cable

Cable diameter and bending radius small, It can installation freely in narrow room



Geometrical Characteristics

Cable Type

4

6

Cable Diameter(mm)

7.50

8.50

Cable Weight(kg/km)

100

115

TBF Diameter(μm)

900±50

Mechanical Characteristics



Max Load(N)

Long Term

600

600

Short Term

1300

1500



Bending Radius(CM)

Dynamic

20×D (D: Cable Diameter)

Static

10×D (D: Cable Diameter)

Fiber

 Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125

Transmission Characteristics



 SMF

50/125

62.5/125



1310/1550(nm)

850/1300(nm)

850/1300(nm)

 Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

 AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

 Min Bandwidth(MHz·km)

——

400/400

160/500

Environmental Characteristics

Storage Operating Temperature

-40℃~+60℃
