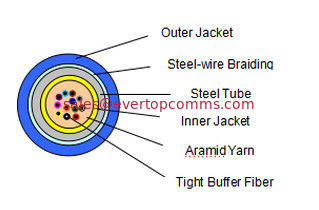

Distribution Armored Cable

China Distribution Armored Cable supplier

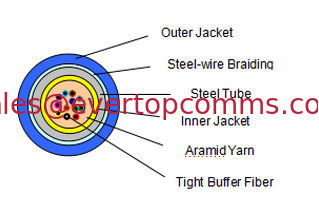

Large Image :  Distribution Armored Cable

Product Details:

Place of Origin: Ningbo of China
Brand Name: EVERTOPCOMMS

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

Distribution Armored Cable

Characteristic:

600μm tight buffer fiber, steel tube protect, reinforcing steel-wire braiding flame-retardant jacket. High

indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.

   Excellent stripping performance of tight buffer fiber

   Suited to SM fiber and MM fiber(50μm and 62.5μm)

  It is ideal choice of fibreoptic temperature transmission project













Geometrical Characteristics

Cable Type

4

6

8

12

Cable Diameter(mm)

6.5

6.5

7.5

7.5

Cable Weight(kg/km)

70

70

80

80

TBF Diameter(μm)

600

Mechanical Characteristics



Max Load(N)

 Long Term

300

 Short Term

800



Bending Radius(CM)

 Dynamic

20×D  (D: Simplex Cable Diameter)

 Static

10×D  (D: Simplex Cable Diameter)

Fiber

 Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125

Transmission Characteristics



 SMF

50/125

62.5/125



1310/1550(nm)

850/1300(nm)

850/1300(nm)

 Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

 AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

 Min Bandwidth(MHz·km)

——

400/400

160/500

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
