Tight Buffer Optic Fiber

China Tight Buffer Optic Fiber supplier

Large Image :  Tight Buffer Optic Fiber

Product Details:

Place of Origin: Ningbo of China

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

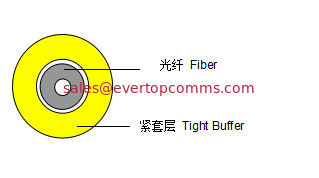

Tight Buffer Optic Fiber



1.Characteristic

     .Excellent stripping performance

    .Suited to SM fiber and MM fiber(50μm and 62.5μm)

    .It is ideal choice of active apparatus used pigtail

    .Excellent temperature performance

    .Buffer material: PVC,LSZH,Hytrel,NYLON,PVDF



2.Geometrical Characteristics

 TBF Diameter(μm)

900±50

600±50

 TBF Weight(kg/km)

0.9

0.4

 Fiber Cladding Diameter(μm)

125±1

125±1



3.Mechanical Characteristics



Max Load(N)

Short Term

6

Long Term

3



Bending Radius(CM)

 Dynamic

20×D (D: TBF Diameter)

 Static

10×D (D: TBF Diameter)



4.Fiber

 Fiber Type(core/cladding dimension

8.3/125, 50/125, 62.5/125



5.Transmission Characteristics



SMF

50/125

62.5/125



1310/1550(nm)

850/1300(nm)

850/1300(nm)

 Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

 AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

Min Bandwidth(MHz·km)

——

400/400

160/500



6.Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
