Home ProductsIndoor Optical Cable

Duplex Flat Twin Fiber Optic Cable

I'm Online Chat Now

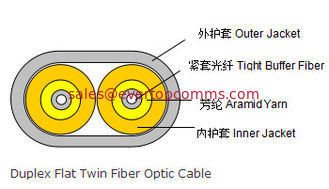

Duplex Flat Twin Fiber Optic Cable

China Duplex Flat Twin Fiber Optic Cable supplier

Large Image :  Duplex Flat Twin Fiber Optic Cable

Product Details:

Place of Origin: Ningbo of China
Brand Name: EVERTOPCOMMS

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

Duplex Flat Twin Fiber Optic Cable

Duplex Flat Twin Fiber Optic Cable

1.Characteristic

      subcable, flame-retardant jacket

     Excellent stripping performance of tight buffer fiber

     Suited to SM fiber and MM fiber (50μm and 62.5μm)



2.Geometrical Characteristics

Duplex Cable Type

φ3.0

φ2.4

φ2.0

φ1.8

Duplex Cable Diameter(mm)

3.85/6.80

3.5/6.0

3.1/5.0

2.8/4.6

Duplex Cable Weight(kg/km)

17

12

9

8

TBF Diameter(μm)

900±50

600±50



3.Mechanical Characteristics



Max Load(N)

Long Term

100

100

100

100

 Short Term

200

200

200

200



Bending Radius(CM)

 Dynamic

20×H  (H: Cable Axis)

 Static

10×H (H: Cable Axis)



4.Fiber

 Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125



5.Transmission Characteristics



SMF

50/125

62.5/125



1310/1550(nm)

850/1300(nm)

850/1300(nm)

Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

 AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

 Min Bandwidth(MHz·km)

——

400/400

160/500



6.Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
