FC/PC Singlemode 900um Connector

I'm Online Chat Now

FC/PC Singlemode 900um Connector

China FC/PC Singlemode 900um Connector supplier

Large Image :  FC/PC Singlemode 900um Connector

Product Details:

Place of Origin: China
Model Number: FC/PC Singlemode 900um

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: 1PC/polybag, 5 or 10 bags/bigger bag, bags/inner box, 2 inner boxes/CTN.
Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

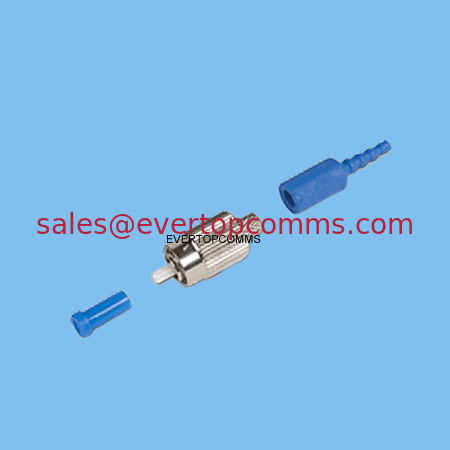

 FC/PC Singlemode 900um Connector

Fiber optic connector is a mechanical device used to align and join two or more fibers together to provide a means for attaching to and decoupling from a transmitter, receiver, or any other fiber optic equipment or devices. Ferrules are used to do the precise alignment for the connectors. Single mode needs higher precious for alignment.

 The pre-assembled, one piece body design and the pre-polished ferrules provide quick and economical terminations both in factory and in-the field settings. Also, with the pre-polished ferrule, an uniform end-face geometry is ensured, resulting in consistent optical performance.
·Meets TUV, ISO9001, TLC, EIA / TIA, IEC NTT and bell core GR 326-core  standards
·All types of connectors available: SC / LC / FC / ST / MT-RJ / MU / E2000 / MPO / D4 / DIN /   SMA /FDDI /    ESCON
·Superior qualified standard: PC / UPC / APC polishing
·Φ0.9mm, Φ2.0mm and Φ3.0mm housing and boot available.
·Different type housing and boot for your choice.
·Single mode (9 / 125) or multimode (50 / 125 or 62.5 / 125)
·Simplex / Duplex Connector available
·100% optic test (insertion loss and return loss)
·Customized specifications welcome!
·Connectors can be supplied as a pre-assembled one-piece or as a connector Kits
·Clips are available for duplex connectors for SC and LC
Insertion loss       PC/UPC≤0.2dB
Return loss          PC/UPC≥50dB
Repeatability (500 matings) ≤0.2dB
Exchangeability  ≤0.2dB
