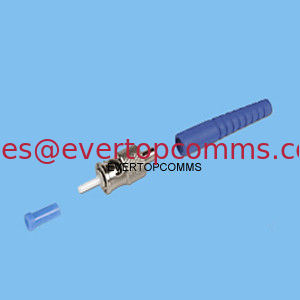

ST/PC Singlemode 2.0mm Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Fiber optic connector is a mechanical device used to align and join two or more fibers together to provide a means for attaching to and decoupling from a transmitter, receiver, or any other fiber optic equipment or devices. Ferrules are used to do the precise alignment for the connectors. Single mode needs higher precious for alignment.
ST connector has bayonet coupling mechanism, and it has high performance single mode or multimode pre-radiuses ceramic ferrule. Pre-polished ferrules minimize the polishing times and provide a consistent ferrule end face geometry. ST is a trademark of Lucent Technologies.
FEATURES
·Meets TUV, ISO9001, TLC, EIA / TIA, IEC NTT and bell core GR 326-core standards
·All types of connectors available: SC / LC / FC / ST / MT-RJ / MU / E2000 / MPO / D4 / DIN / SMA /FDDI / ESCON
·Superior qualified standard: PC / UPC / APC polishing
·Φ0.9mm, Φ2.0mm and Φ3.0mm housing and boot available.
·Different type housing and boot for your choice.
·Single mode (9 / 125) or multimode (50 / 125 or 62.5 / 125)
·Different type housing and boot for your choice.
·Single mode (9 / 125) or multimode (50 / 125 or 62.5 / 125)
·Simplex / Duplex Connector available
·100% optic test (insertion loss and return loss)
·Customized specifications welcome!
·Connectors can be supplied as a pre-assembled one-piece or as a connector Kits
·Clips are available for duplex connectors for SC and LC
SPECIFICATIONS
Insertion loss PC/UPC≤0.2dB
Return loss PC/UPC≥35dB
Repeatability (500 matings) ≤0.2dB
Exchangeability ≤0.2dB
