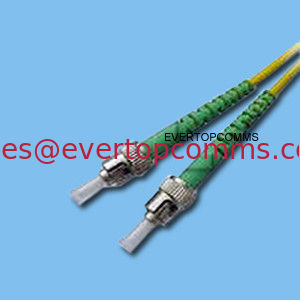

ST/APC-ST/APC Singlemode Simplex Patch Cord
|
Detailed Product Description
ST fiber cable connector has a bayonet-style housing and a long spring-loaded ferrule hold the fiber. They are available in both multimode or singlemode versions. Horizontally mounted simplex and duplex adapters are available with metal or plastic housing, with a choice of phosphor bronze or zirconia split sleeve. The ST fiber patch is one of the older generations of connector, but is still widely used for multimode networks, including LANs for buildings and campuses.
Features
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE
Applications
-Telecommunication networks
-Data transmission networks
-Computer networks (Gigabit Ethernet, SoNet, etc. )
-Cabling system
-Interconnection of fiber optic transmission equipments
-ODF of optical transmission systems
-FTTX applications
-Data transmission networks
-Computer networks (Gigabit Ethernet, SoNet, etc. )
-Cabling system
-Interconnection of fiber optic transmission equipments
-ODF of optical transmission systems
-FTTX applications
Specifications
Fiber Type: OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG)
Connector Polishing Type: PC, UPC, APC
Fiber Cable Jacket material: PVC/LSZH
Standard color: Singlemode :Yellow color, Multimode :Orange color
Cable strain relief (boot) O.D. : 0.9mm/1.8mm/2.0mm/3.0mm
Compliant with JIS C-5973, IEC RoHS
Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry.
Connector Polishing Type: PC, UPC, APC
Fiber Cable Jacket material: PVC/LSZH
Standard color: Singlemode :Yellow color, Multimode :Orange color
Cable strain relief (boot) O.D. : 0.9mm/1.8mm/2.0mm/3.0mm
Compliant with JIS C-5973, IEC RoHS
Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry.
Parameter table
Insertion loss Singlemode: PC/UPC≤0.2dB APC≤0.2dB
Multimode PC/UPC≤0.3 dB
Return loss Singlemode PC/UPC≥50dB APC≥60 dB
Multimode PC/UPC≥35 dB
