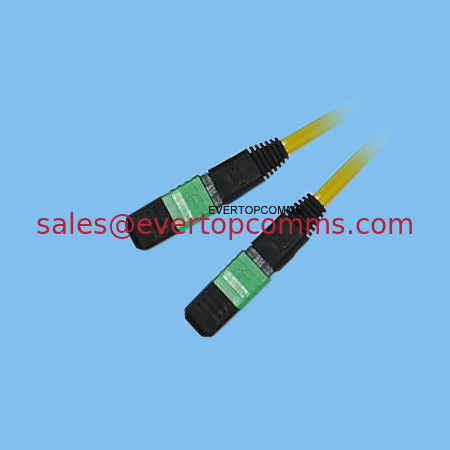

MPO/APC-MPO/APC Singlemode Patch Cord
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
|
The singlemode or multimode MPO fiber cable available from Huihong are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.
Features
---Low insertion and back reflection loss ---Good exchangeability ---Good durability ---High temperature stability ---Standard: Telcordia GR-326-CORE
Applications
-Telecommunication networks
-Data transmission networks -Computer networks (Gigabit Ethernet, SoNet, etc. ) -Cabling system -Interconnection of fiber optic transmission equipments -ODF of optical transmission systems -FTTX applications
Specifications
Fiber Type: OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG)
Connector Polishing Type: PC, UPC, APC Fiber Cable Jacket material: PVC/LSZH Standard color: Singlemode :Yellow color, Multimode :Orange color Cable strain relief (boot) O.D. : 0.9mm/1.8mm/2.0mm/3.0mm Compliant with JIS C-5973, IEC RoHS Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry. Parameter table
Insertion loss Singlemode: PC/UPC≤0.5dB
Multimode PC/UPC≤0.5 dB
Return loss Singlemode PC/UPC≥45 dB
Multimode PC/UPC≥20 dB
|
|
|
