fiber optic splice closure H002

China fiber optic splice closure H002 supplier

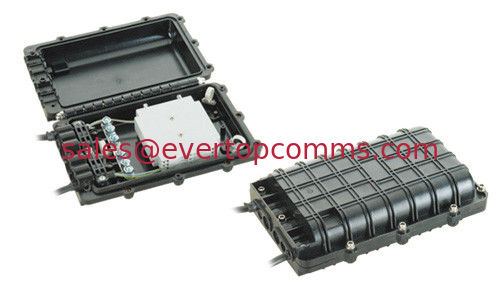

Large Image :  fiber optic splice closure H002

Product Details:

Place of Origin: China
Brand Name: evertopcomms
Model Number: H002

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

fiber optic splice closure H002
1. Scope of application
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.
2. Basic structure and configuration
2.1 Dimension and capacity


Outside dimension (LxWxH) 320×210×85 (mm)
Weight (excluding outside box) 2650g – 2800g
Number of inlet/outlet ports 3 (pieces) on each side
Diameter of fiber cable Φ8—Φ20 (mm)
Capacity of FOSC Bunchy: 12—120 (Cores)
2.2 Main components


Name of components
Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole
Internal diameter:
Fiber optic splice tray
Max 8 pieces (bunchy)
Fixing heat shrinkable protective sleeve and holding fibers
Suitable for:
Bunchy: 12,24, (cores)
3 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
4 Port plug 6 pieces Sealing empty ports
testing valve
1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
7 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection Configuration as per requirement
2.3 Main accessories and special tools


Name of accessories
Quantity Usage Remarks
Heat shrinkable protective sleeve
  Protecting fiber splices
Configuration as per capacity
2 Nylon tie
Fixing fiber with protective coat
Configuration as per capacity
3 Insulation tape 1 roll
Enlarging diameter of fiber  cable for easy fixing
4 Desiccant 1 bag
Put into FOSC before sealing for desiccating air.
5 Seal tape 1 roll
Enlarging diameter of fiber  cable which fits in with seal fitting
Configuration as per specification
6 Hanging hook 1 set
For aerial use
7 Earthing wire 1 piece
Putting through between earthing devices
8 Abrasive cloth 1 piece Scratching fiber cable
9 Labeling paper 1 piece Labeling fiber
10 Special wrench 2 pieces Fixing bolts, tightening nut of reinforced core
11 Measuring paper 1 piece To measure circle, of which its diameter is enlarged with seal tape
Buffer tube
To be decided by customers Hitched to fibers and fixed with FOST, managing buffer
Configuration as per requirement

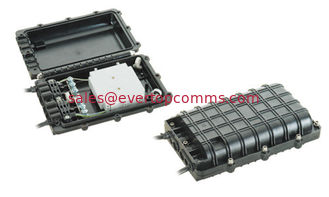

fiber optic splice closure H002
