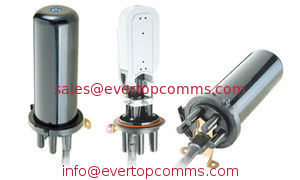

cap-type fiber optic splice closure ETC-D005
cap-type fiber optic splice closure ETC-D005

1.     Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from –40℃ to +65℃.
2. Basic structure and configuration
2.1 Dimension and capacity



Outside dimension (Height x Diameter)
420mm×190mm
Weight (excluding outside box)
2300 g— 2500g
Number of inlet/out ports
6 pieces in general
Diameter of fiber cable
Φ8mm~Φ25 mm
Capacity of FOSC
Bunchy: 6-96 (cores), Ribbon: up to 144 (cores)

2.2 Main components



No.
Name of components
Quantity
Usage
Remarks
1
FOSC cover
1 piece
Protecting fiber cable splices in whole
Height x Diameter
350mm x 150mm
2
Fiber optic splice tray (FOST)
Max. 5 trays (bunchy)
Max. 2 trays (ribbon)
Fixing heat shrinkable protective sleeve and holding fibers
Suitable for: Bunchy:6,12,24(cores) Ribbon:6 (pieces)
3
Fiber holding tray
1 pcs
Holding fibers with protective coat

4
Base
1set
Fixing internal and external structure

5
Plastic hoop
1 set
Fixing between FOSC cover and base

6
Seal fitting
1 piece
Sealing between FOSC cover and base

7
Pressure testing valve
1 set
After inject air, it is used for  pressure testing and sealing testing
Configuration as per requirement
8
Earthing deriving device
1 set
Deriving metal parts of fiber cables in FOSC for earthing connection
Configuration as per requirement

2.3 Main accessories and special tools



No.
Name of accessories
Quantity
Usage
Remarks
1
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
2
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
3
Heat shrinkable fixing sleeve (single)

Fixing and sealing single fiber cable
Configuration as per requirement
4
Heat shrinkable fixing sleeve (mass)

Fixing and sealing mass of fiber cable
Configuration as per requirement
5
Branching clip

Branching fiber cables
Configuration as per requirement
6
Earthing wire
1 piece
Putting through between earthing devices

7
Desiccant
1 bag
Put into FOSC before sealing for desiccating air

8
Labeling paper
1 piece
Labeling fibers

9
Special wrench
1 piece
Tightening nut of reinforced core

10
Metal hoop
1 set
For wall mounting and pole hugging

11
Buffer tube

decided by customers
Hitched to fibers and fixed with FOST, managing buffer.
Configuration as per requirement
12
Aluminum-foil paper
1pc
Protect the bottom of FOSC


Fiber Optic Patch Cord
