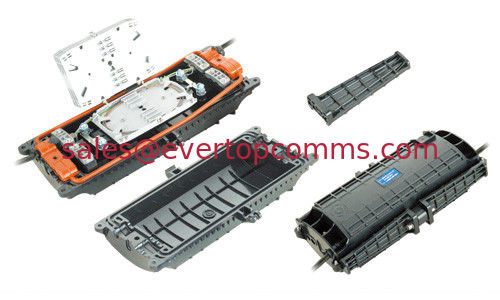

fiber optic splice closure ETC-H001
fiber optic splice closure ETC-H001


1. Scope of application
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole. The ambient temperature ranges from -40 to +65℃.

2. Basic structure and configuration
2.1 Dimension and capacity
Outside dimension (LxWxH)
390×210×120
Weight (excluding outside box)
1900g-2100g
Number of inlet/outlet ports
6 ports
Diameter of fiber cable
Φ7—Φ16(mm)
Capacity of FOSC
Bunchy: 6—96(Cores)
Ribbon: max. 144 (Cores)

2.2 Main components
No.
Name of components
Quantity
Usage
Remarks
1
Housing
1 set
Protecting fiber cable splices in whole
Internal diameter:
285x110 (mm)
2
Insert plate
2 pairs
Fixing the housing
175x56x30(mm)
3
Fiber optic splice tray
(FOST)
Max. 4 trays (bunchy)
Max. 4 trays (ribbon)
Fixing heat shrinkable protective sleeve and holding fibers
Suitable for: Bunchy: 6,8,12,16,24(cores) Ribbon: 3 (pieces)
4
Foundation
1 set
Fixing fiber cable, reinforced core and FOST

5
Seal fitting
1 set
Sealing between FOSC cover and FOSC bottom

6
Port plug
6 pieces
Sealing empty ports

7
Earthing deriving device
1 set
Deriving metallic parts of fiber cables in FOSC for earthing connection
Configuration as per requirement


2.3 Main accessories and special tools
No.
Name of accessories
Quantity
Usage
Remarks
1
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
2
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
3
Insulation tape
1 roll
Enlarging diameter of fiber  cable for easy fixing

4
Seal tape
1 roll
Enlarging diameter of fiber  cable which fits in with seal fitting
Configuration as per specification
5
Hanging hook
1 set
For aerial use

6
Earthing wire
1 piece
Putting through between earthing devices
To put through as per actual requirement
7
Abrasive cloth
1 piece
Scratching fiber cable

8
Labeling paper
1 piece
Labeling fiber

9
Special wrench
3 pieces
Fixing bolts, tightening nut of reinforced core

10
Measuring paper
1 piece
To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape
To measure perimeter with the corresponding measuring paper
11
Buffer tube

To be decided by customers
Hitched to fibers and fixed with FOST, managing buffer
Configuration as per requirement
12
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
