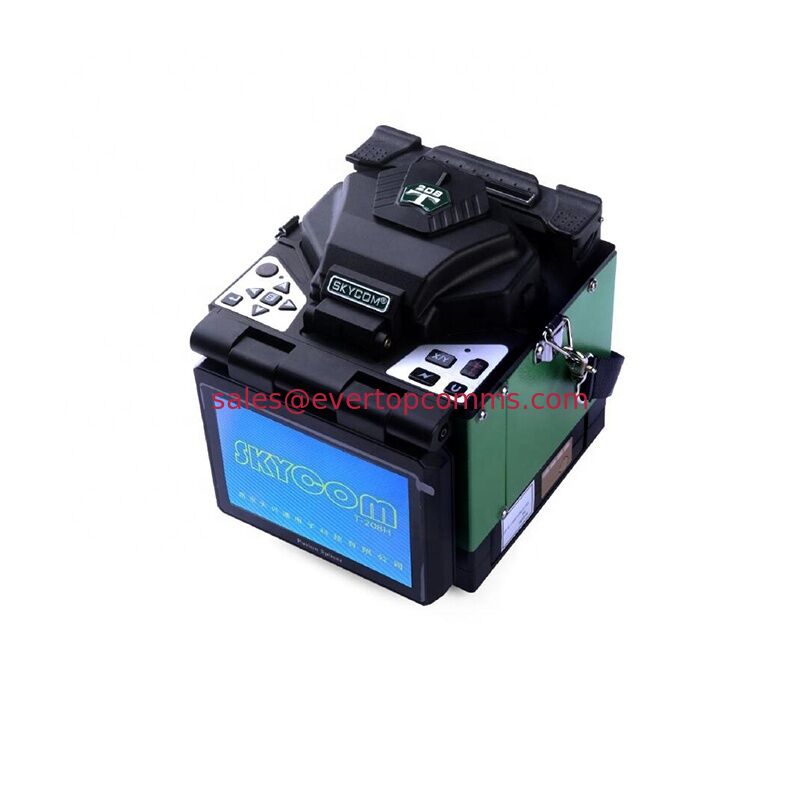

T-208H Hi-Precision Digital Fusion Splicer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Optic Fusion Splice | Warranty Time: | 1 Year |
|---|---|---|---|
| Product Name: | T-208H Hi-Precision Digital Fusion Splicer | Model Name: | T-208H |
| Applicable Fibers: | SM(G.651,G.652,G.657), MM, NZ-DS, EDF, Pigtail, Etc. | Return Loss: | ≥60dB |
| Splicing Time: | 9s | Heating Time: | 25s |
Product Description
T-208H Hi-Precision Digital Fusion Splicer
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region
surrounding it are almost as strong as the virgin fiber itself.
surrounding it are almost as strong as the virgin fiber itself.
T-208H is more concise and smaller in size and has obtained 2 patents for its new technologies.
Key Features
> 5 inches high resolution colorful LCD display, image can be turned according to position
> Average splice time: 9 seconds
> Average tube-heat time: 25 seconds
> Lithium battery: Rechargable and up to 220 times of continuous splice and heat after fully charged
> X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times
> Cutting-edge technology for image processing
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Storing 4,000 groups of latest splice results
> New technology of fiber core alignment, enhanced accuracy
> New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
> New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC
connector - T-208HF).
Specification: | ||||
Model | T-208H | |||
Application fibers | SM(G.651,G.652,G.657), MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire) | |||
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) | |||
Return Loss | ≥60dB | |||
Cladding Diameter | 100-150um | |||
Coating Diameter | 100-1000um | |||
Applicable cable | FTTH Drop Cable | |||
Cleave Length | 9-16mm(∮0.25mm) ,10-16mm(∮0.9mm) | |||
Quick splicing time | 9 seconds | |||
Quick heating time | 25 seconds | |||
Splicing Program | 60-Pre-programmed, 40 user programmable | |||
Heating Program | 10 groups | |||
Protection Sleeve Length | 20mm,40mm,60mm | |||
Operating Language | Chinese, English, French, Portuguese, Spanish | |||
Operating Conditions | -10~+50°C(operation temperature),-20~+70°C(storage temperature) 0~95% RH(humidity), 0~5000m(altitude) | |||
Power Supply | AC input | AC adaptor: 100~240V input voltage, 50/60Hz; | ||
DC input | 12V, 5A output voltage(DC) | |||
Battery | Inner lithium rechargeable battery: 11.1V, 5200mAh, Up to 220 times splice and heat | |||
Monitor | 5 inches high resolution colorful LCD display | |||
Fiber Image Magnification | X or Y axis Separately views 360 times magnification, or Simultaneously 220 times | |||
Estimated Splice Loss | Available | |||
Cleaving angle detection | Available | |||
Automatic setting | camera | |||
Forward motor | ||||
Tension Test | 2.0N(200gf)(Standard) | |||
Storage of Splice Result | 4,000 groups of latest splice results | |||
Splicing Model | Auto & Manual & Full Auto | |||
Optical Fiber Fixture | 3-in-1 cutting fixture;Multipurpose 1+N fixture (T-208HF, for SC/LC/FC connector) | |||
Dimensions | 130(W)*135(D)*130(H)mm; Package:53*32*30cm | |||
Weight | 1.75kg(without battery ) /2.1kg with battery | |||
Standard Accessories: | ||||
No. | Item | Quantity | ||
1 | Machine T-208H | 1 | ||
2 | Fiber Cleaver | 1 | ||
3 | Fiber Stripper | 1 | ||
4 | AC Adaptor (Charger) | 1 | ||
5 | Battery | 1 | ||
6 | Spare Electrodes | 1 | ||
7 | Cooling Tray | 1 | ||
8 | Instruction CD | 1 | ||
9 | Quick Reference Guide | 1 | ||
10 | Rubber-insulated wire stripping pliers | 1 | ||
11 | Rubber-insulated wire 3-in-1 cutting fixture | 1 | ||
12 | Carring Case with Carrying Strap | 1 | ||
Application:
1.telecommunication network
2.FTTX
3.Local Area Network
