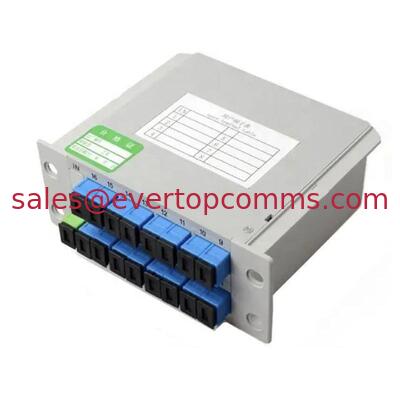

1*4 1*8 1*16 Insert Card Type With SC/PC Connectors And Adapters Fiber Optic Splitters
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Optic Splitter | Warranty Time: | 1 Year |
|---|---|---|---|
| Material: | PVC | Name: | 1*16 Insert Card Type SC/PC Connectors Fiber Optical Splitters |
| Connector: | SC/PC | Application: | Lan And CATV System |
| Operating Temperature (°C): | -40~+85 | Operating Wavelength(nm): | 1260~1650 |
| Type: | 1*16 Insert Box |
Product Description
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In
optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.
optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.
Performance Specifications: | ||||||||||||||
1×N PLC Splitter (Measured at room temperature include connector data) | ||||||||||||||
TYPE | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | ||||||||
Fiber Type | G657A or customer Request | |||||||||||||
Operating Wavelength(nm) | 1260～1650 nm | |||||||||||||
Insertion Loss(dB) | Max (include connector) | 4.2 | 7.5 | 11 | 14 | 17.4 | 20.5 | |||||||
Max(no connector) | 3.7 | 7.2 | 10.5 | 13.2 | 16.9 | 19.5 | ||||||||
Uniformity Loss(dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 1.8 | |||||||
Polariation Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | |||||||
Return Loss (dB) | UPC:50 APC:55 | |||||||||||||
Operating Temperature (°C) | -40～+85 | |||||||||||||
2×N PLC Splitter (Measured at room temperature include connector data) | ||||||||||||||
TYPE | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 | ||||||||
Fiber Type | G657A or customer Reques | |||||||||||||
Operating Wavelength(nm) | 1260～1650nm | |||||||||||||
Insertion Loss(dB) | Max(include connector) | 4.4 | 7.8 | 10.9 | 14.3 | 17.2 | 20.5 | |||||||
Uniformity Loss(dB) | Max | 0.4 | 0.8 | 0.8 | 1 | 1.5 | 1.8 | |||||||
Polariation Dependent loss(dB) | Max | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | |||||||
Return Loss (dB) | UPC:50 APC:55 | |||||||||||||
Operating Temperature (°C) | -40～+85 | |||||||||||||
Note:Connector type:SC,FC,LC,ST,etc, PC,UPC,APC are be ok.as request. | ||||||||||||||
PLC MINI TYPE AS STRUCTION PICTURE | ||||||||||||||||
ORDER INFORMATION | ||||||||||||||||
Wavelength (nm) | Port | Input Fiber Length | Output Fiber Length | Input Fiber Type | Output Fiber Type | Fiber Standard | Input Connector | Output Connector | ||||||||
PLC=1260-1650 | 102=1*2 104=1*4 108=1*8 116=1*16 132=1*32 164=1*64 202=2*2 204=2*4 208=2*8 216=2*16 232=2*32 264=2*64 | 1=1M 2=2M 3=Customized | 1=1M 2=2M 3=Customized | 1=250um bare fiber 2=900um loose tube 3=900um tight tube | 1=250um bare fiber 2=250um ribbon fiber | 1=G652 2=G657A 3=G657B | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/PC 6=ST | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/PC 6=ST | ||||||||
Feature: | ||||||||
1. Compact Design | ||||||||
2. High Reliability and Stabilty | ||||||||
3. Good channel-to-channel uniformity | ||||||||
Application: | ||||||||
- Optical Signal Distribution | ||||||||
- Data Communications | ||||||||
- Lan and CATV System | ||||||||
