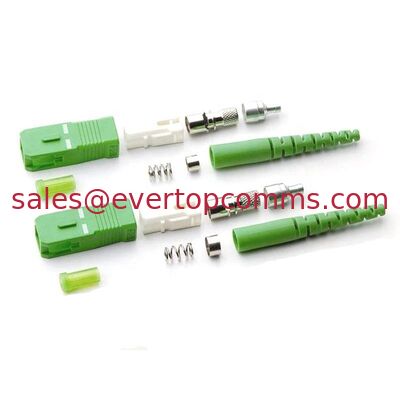

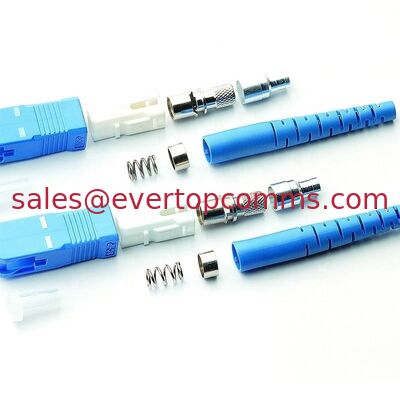

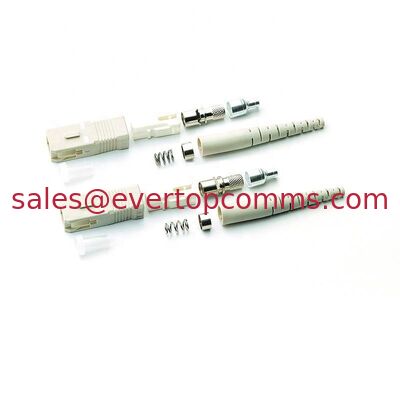

SC APC UPC Single Mode Multimode Fiber Optic Connector 2.0mm 3.0mm unassembled
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Adapter & Connectors | Use: | FTTH |
|---|---|---|---|
| Warranty Time: | 1 Year | Product Name: | SC/APC Fiber Optic Connector |
| Fiber Type: | SM | Material: | PVC |
| Boot Color: | Green | Diameter: | 3.0mm / 2.0mm / 0.9mm |
| Insertion Loss: | ≤0.20dB | Application: | FTTH FTTX Network |
| Operating Temperature: | -40°-80°C |
Product Description
SC APC UPC Single Mode Multimode Fiber Optic Connector 2.0mm 3.0mm unassembled
Optical fiber connectors, it is the two end precision optical fiber optic patch cord, dock up according to the transmission medium can be divided into common silicon-based optical single-mode, multi-mode patch cord, and other such as plastic for transmission medium of fiber optic jumper cables, By connecting head structure forms can be divided into: FC , SC , ST , LC , MTRJ , MPO , MU , SMA , FDDI , E2000 , DIN4 , D4 patch cord etc various forms.
Specification: | ||||||||
- Insertion Loss: Single mode ≤0.20dB & Multimode ≤0.25dB | ||||||||
- Return Loss: PC ≥50 dB, UPC ≥55 dB & APC ≥65 dB | ||||||||
- Durability <0.20 dB typical change, 1000 mating | ||||||||
- Operating Temperature: -40 to + 80ºC | ||||||||
- Ferrule Hole Sizes: *Single mode: 125.0+1/-0μm, Concentricity: ≤1.0μm, 125.5+1/-0μm, Concentricity: ≤1.0μm, 126.0+1/-0μm, Concentricity: ≤1.0μm *Multi mode: 125μm, Concentricity: 1≤3μm or 127μm, Concentricity: 1≤3μm or 128μm, Concentricity: 1≤3μm | ||||||||
Feature:
1. High wearable.
2. All types of connectors available: SC / LC / FC / ST / MT-RJ / MU / E2000 / MPO / D4 / DIN / SMA / FDDI / ESCON
3. Superior qualified standard: PC / UPC / APC polishing
4. Φ0.9mm, Φ2.0mm and Φ3.0mm housing and boot available.
5. Single mode (9 / 125) or multimode (50 / 125 or 62.5 / 125)
6. Simplex / Duplex Connector available
7. High size precision.
8. 100% optic test (insertion loss and return loss)
9. Good temperature stabilization
Application: | ||||||||
- Active device termination | ||||||||
- Test equipment | ||||||||
- Telecommunication networks | ||||||||
- Local Area Networks (LANs) | ||||||||
- Data processing networks | ||||||||
- Premise installations | ||||||||
- Wide Area Networks (WANs) | ||||||||
