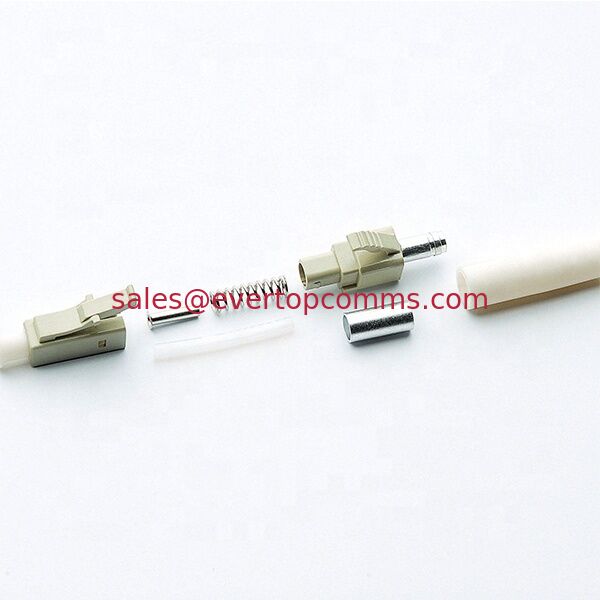

LC PC Multimode 2.0mm Fiber Optical Connector unassembled
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Adapter & Connectors | Warranty Time: | 1 Year |
|---|---|---|---|
| Product Name: | LC MM Connector | Material: | PVC |
| Boot Color: | Beige | Diameter: | 2.0mm |
| Insertion Loss: | ≤0.25dB | Application: | FTTH FTTX Network |
| Operating Temperature: | -40°-80°C |
Product Description
LC UPC MM 2.0mm Fiber Optical Connector unassembled
The LC type connector was developed by the famous Bell Institute, and it is made of a modular jack (RJ) latching mechanism that is easy to operate. The size of the pins and sleeves used is half of the size used by ordinary SC, FC, etc., and is 1.25mm. This can increase the density of the fiber connectors in the fiber distribution frame. At present, in the single-mode SFF, the LC type connector has actually occupied a dominant position, and its application in the multi-mode aspect has also grown rapidly.
Specification: | ||||||||
- Insertion Loss: Single mode ≤0.25dB & Multimode ≤0.25dB | ||||||||
- Return Loss: PC ≥50 dB, UPC ≥55 dB & APC ≥65 dB | ||||||||
- Durability <0.20 dB typical change, 1000 mating | ||||||||
- Operating Temperature: -40 to + 80ºC | ||||||||
- Ferrule Hole Sizes: *Single mode: 125.0+1/-0μm, Concentricity: ≤1.0μm, 125.5+1/-0μm, Concentricity: ≤1.0μm, 126.0+1/-0μm, Concentricity: ≤1.0μm *Multi mode: 125μm, Concentricity: 1≤3μm or 127μm, Concentricity: 1≤3μm or 128μm, Concentricity: 1≤3μm | ||||||||
Application:
1. Active device termination
2. Telecommunication networks3. Local Area Networks
Feature: | ||||||||
⇒ Ferrule end surface predomed | ||||||||
⇒ Boots in a variety of colors | ||||||||
⇒ Φ0.9mm, Φ2.0mm and Φ3.0mm housing and boot available. | ||||||||
⇒ Single mode (9 / 125) or multimode (50 / 125 or 62.5 / 125) | ||||||||
⇒ Simplex / Duplex Connector available | ||||||||
