Excellent Temperature Stability DIN/PC Connector Optical Fiber Adapter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Adapter & Connectors | Model: | DIN/PC |
|---|---|---|---|
| Name: | DIN/PC Connector Optical Fiber Adapters | Material: | Metal |
| Application: | Instrumentation | Insertion Loss: | ≤0.2dB |
| Operating Temperature: | -40°-+80°C | Fiber Type: | SM/MM |
| Ferrule: | Ceramic | Color: | Red |
| Durability: | 1000times |
Product Description

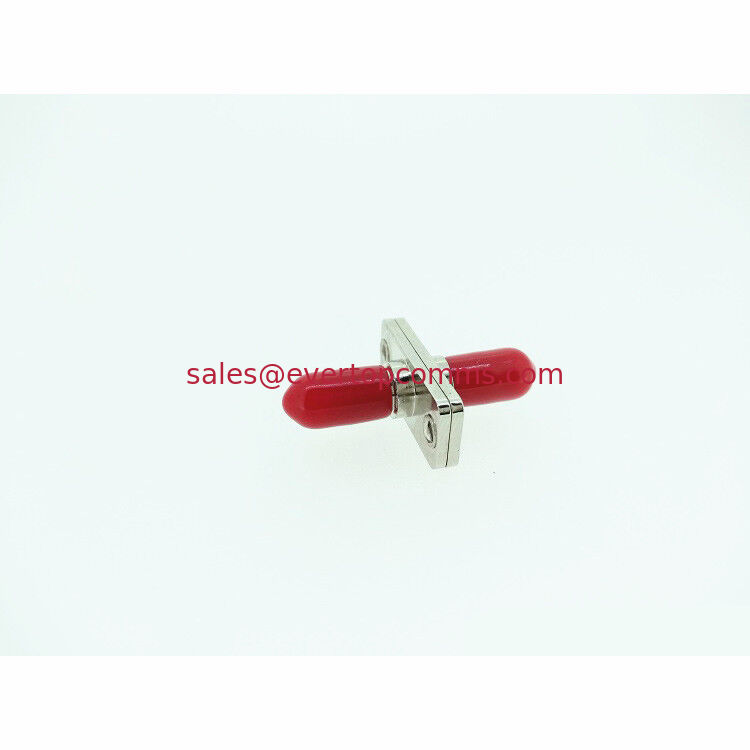

Excellent Temperature Stability DIN/PC Connector Optical Fiber Adapters
Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.They are available for use with either singlemode or multimode patch cables.Wirenet provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatabilityThese adaptors are precision made and manufactured to demanding specifications.
The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance
The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance
Specification: | ||||||||
Insertion loss: <0.20dB | ||||||||
Withdrawal force (g/f): 200-600 | ||||||||
Operating Temperature: -40º C to + 80º C | ||||||||
Durability plug and unplug: 1000times | ||||||||
All parts compliant with ROHS | ||||||||
1. Model Number : DIN
2. Sleeve Type : Ceramic
3. loss: ≤0.2dB
4. Polishing : PC
5. Model : SM, MM
6. Excellent changeability and directivity
7. Good durability and interchangeability
8. Free-floating ceramic ferrule
Applications: | ||||||||
FTTH and FTTx | ||||||||
Telecommunication Networks | ||||||||
CATV Networks | ||||||||
Data communication Networks | ||||||||
Testing Instruments | ||||||||
Fiber optic sensing | ||||||||
High speed transmission systems | ||||||||
Industtial, Mechanical and Military | ||||||||
Company Profile
Evertop Communications Co.,Limited
Evertop Communications Co.,Limited was founded in July 2002, specializing in telecommunication systems, such as fiber optic patchcord, fiber optic connector, fiber optic adapter,etc. We keep growing rapidly during these years. Evertop Communications Co.,Limited has been enjoyed great reputation in the international market. Our major customers come from Europe, U.S.A.,Middle East, etc. We welcome warmly more cooperation with corporations and individuals from different areas in the world.
Factory
Certifications
CE
ROHS
FAQ
Q1: What is your main products?
A: Fiber optic cable, patch cord, adapter, pigtail, connector, joint closure and so on.
Q2: What is your delivery time?
A: Generally, it will take 7-15 Working Days.The specific delivery time depends on the items and quantity of your order.
A: Generally, it will take 7-15 Working Days.The specific delivery time depends on the items and quantity of your order.
Q3: Can you offer Free Pre-Sales Consulting or Free Sample?
A: Yes. Evertop offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for ourcustomers.Free Samples are available, for your evaluation, if you are interested
A: Yes. Evertop offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for ourcustomers.Free Samples are available, for your evaluation, if you are interested
Q4: How can I pay for order?
A: We accept T/T, L/C, western union.
A: We accept T/T, L/C, western union.
