Singlemode 2.0mm 3.0mm Duplex 3m 5m LC/PC-SC/PC Fiber Optical Patch Cord
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Optic Patch Cord, LC/PC-SC/PC | Use: | FTTH |
|---|---|---|---|
| Warranty Time: | 1 Year | Jacket Color: | Yellow |
| Material: | PVC Or LZSH | Connector Color: | Blue |
| Application: | FTTH | Operating Temperature: | -40℃~+80℃ |
| Diameter: | 2.0mm/3.0mm | Fiber Type: | G652D/G657A1/G657A2 |
| Length: | 3m/5m/10m, Etc. |
Product Description

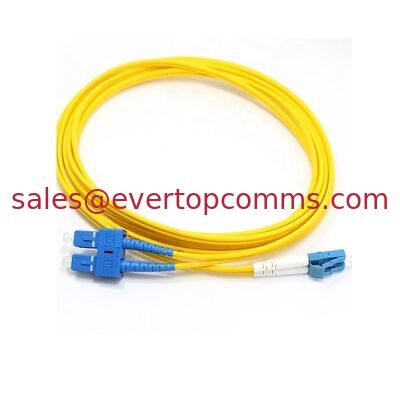

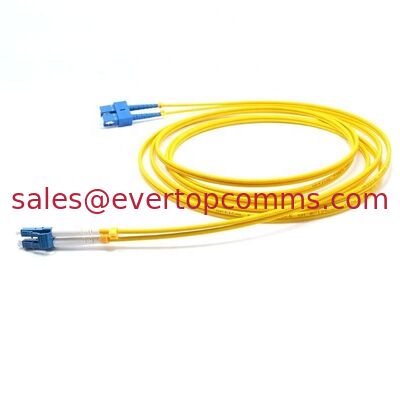

Singlemode 2.0mm 3.0mm Duplex 3m 5m LC/PC-SC/PC Fiber Optical Patch Cord
High performance optical pigtails &patch cords are a defining factor in ensuring any network performs to the highest level. Evertop offers an extensive range of optical pigtails for use in FTTX, telecommunications, data communications and CATV applications. Pigtails & patch cords can be supplied in a variety of lengths, colors and with a variety of different connector types. Different fiber types and cable diameters are also available on request.
Specification: | ||||||||
Fiber Type: OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG) OM4 | ||||||||
Connector Type: LC/PC-LC/PC | ||||||||
Fiber Cable Jacket material: PVC/LSZH | ||||||||
Standard color: Singlemode :Yellow color, Multimode :Orange/Aqua/Violet color or Customized | ||||||||
Cable strain relief (boot) O.D. : 0.9mm//2.0mm/3.0mm/1.6mm/1.8mm | ||||||||
Compliant with JIS C-5973, IEC RoHS | ||||||||
Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry. | ||||||||
.
Parameter table: | ||||||
Mode | Single mode | Multimode | ||||
Polish | UPC | APC | PC | |||
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | |||
Return Loss | ≥50dB | ≥60dB | ≥35dB | |||
Test Wavelength | 1310/1550nm | 850/1310nm | ||||
Durability(500 Matings) | ≤0.2dB | |||||
Operating Temperature | -40℃~+75℃ | |||||
Storage Temperature | -40℃~+85℃ | |||||
Standards-Compliant | ROHS,IEC and GR-326 | |||||
1.FTTH,LAN,FTTX,PON,Optical CATV
2.Local ring net
3.Optical fiber communication system
4.Optical fiber test equipment
5.Optical fiber sensor
6.Industry and military application
Features: | ||||||||
Compliant with international standard such as ANSI,Bellcore,TLA/EIA,IEC,also according with the industrial standards of Telecom in China | ||||||||
Realize the activelink of optic fiber transmission | ||||||||
Excellent interchangeability | ||||||||
Low insertion loss and high return loss | ||||||||
Excellent repeatability and interchangeability | ||||||||
High mechanical durability | ||||||||
