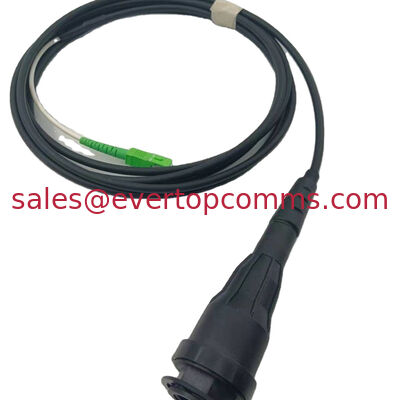

Supertap SC Connector LSZH Sheath 5mm Cable Fiber Optic Patch Cord
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Optic Patch Cord, Supertap SC | Use: | FTTA |
|---|---|---|---|
| Warranty Time: | 1 Year | Jacket Color: | Black |
| Material: | LZSH | Connector Color: | Green |
| Application: | FTTA | Operating Temperature: | -40℃~+80℃ |
| Diameter: | 5.0mm |
Product Description
Supertap SC Connector LSZH Sheath 5mm Cable Fiber Optic Patch Cord
Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.
Features
1. Cost effective solution for in house termination. 2. Low insertion loss and added loss.
3. Height of attenuation.
4. IP67 water, dust proof and corrosionresistant
5. The material in the jumpel cable are all-weather and UV-resistant. 6. Mechanical performance: IEC 61754-4standard.
7. RoHS and REACH materials compliant.
Features
1. Cost effective solution for in house termination. 2. Low insertion loss and added loss.
3. Height of attenuation.
4. IP67 water, dust proof and corrosionresistant
5. The material in the jumpel cable are all-weather and UV-resistant. 6. Mechanical performance: IEC 61754-4standard.
7. RoHS and REACH materials compliant.
Cable Structure
Cable Parameters
Cable Count | Out sheath Diameter （MM) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Minimum Bending Radius (MM) | ||||||
short term | long term | short term | long term | short term | long term | |||||||
1 | 5.0±0.2 | 800 | 400 | 2000 | 1000 | 20D | 10D | |||||
Cable Parameters
Cable Count | Out sheath Diameter （MM) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Minimum Bending Radius (MM) | ||||||
short term | long term | short term | long term | short term | long term | |||||||
1 | (4.0±0.2)x(7.0±0.2) | 1350 | 400 | 2200 | 1000 | 20D | 10D | |||||
Parameter table: | ||||||||
ITEM | Parameter | |||||||
Mode | Single mode | Multimode | ||||||
Polish | Standard | Elite | Standard | Elite | ||||
Insertion Loss | Typical≤0.3dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.5dB Max≤0.25dB | Typical≤0.1dB Max≤0.35dB | ||||
Return Loss | ≥50dB(PC) ≥60dB(APC) | ≥55dB(PC) ≥65dB(APC) | ≥30dB(PC) | ≥30dB(PC) | ||||
