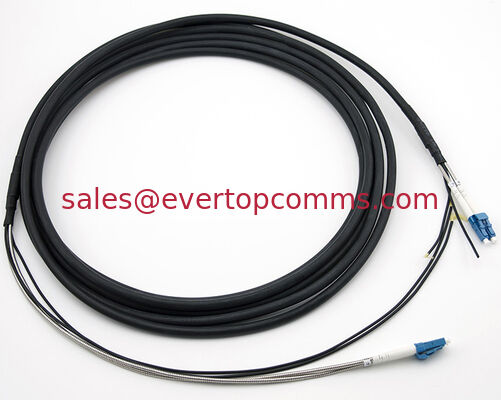

Black Color 2 Core Singlemode Duplex LSZH GYFJH Outdoor PDLC-DLC Fiber Optic Patch Cord Branch with armor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Optic Patch Cord | Material: | LSZH |
|---|---|---|---|
| Jacket Color: | Black | Connector Color: | Blue |
| Core: | 2 | Application: | Data Transmission Networks |
| Connector Type: | PDLC-DLC |
Product Description
Black Color 2 Core Singlemode Duplex LSZH GYFJH Outdoor PDLC-DLC Fiber Optic Patch Cord Branch with armor
Cable Parameters: | ||||||||||||||||||
Fiber Count | Cable Dimension (mm) | Cable Weight (kg/km) | Tensile(N) | Crush N/100mm | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||||||||||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | |||||||||||||
2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 | |||||||||
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | ||||||||||||||||||
ITEM | PARAMETER | ||
Fiber type | 50/125 | ||
Core Diameter | 50 + 2.5 | ||
Core Non-Circularity | <=5.0 % | ||
Cladding Diameter | 125.0+1.0um | ||
Cladding Non-Circularity | <=1.0% | ||
Coating Diameter | 245+7 | ||
Coating-Cladding Concentricity Error | <=12.0um | ||
Coating Non-Circularity | <=6.0um | ||
Core-Cladding Concentricity Error | <=1.0um | ||
Attenuation | 850nm | <=2.3 | |
1300nm | <=0.6 | ||
Numerical Aperture (NA) | 0.200 + 0.015 | ||
Step( mean to bidirectional measurement) | <=0.10 dB | ||
Irregularities Over fiber length and point discontinuity | <=0.10 dB | ||
Difference backscatter coefficient (bidirectional measurement) | <=0.08 db/km | ||
OFL Bandwidth (MHz.km) | OM2 | ||
850nm | >=700 | ||
1300nm | =500 | ||
Effective Modal Bandwidth@850nm(MHz.km) | >=950 | ||
Application support distance on | OM2 | ||
10Gigabit Ethernet SX | 850nm(m) | 150 | |
Gigabit Ethernet SX | 850nm(m) | 750 | |
Gigabit Ethernet LX | 1300nm (m) | 600 | |
Connector Specification: | ||
ITEM | PARAMETER | |
Connector type | DLC/UPC | |
Insertion Loss | <=0.3db | |
Return Loss | >=35db | |
Fiber mode | Multi-mode,50/125 | |
Operating wavelength | 850nm, 1300nm | |
Test wavelength | 850nm, 1300nm | |
Repeatability | <=0.1 | |
Interchangeability | <=0.2dB | |
Durability | <=0.2dB | |
Fiber Length | 1m, 2m….. any length optional. | |
Length and tolerance | 10cm | |
Operating Temperature | -40C ~ +85C | |
Storage Temperature | -40C ~ +85C | |
Features: | ||||||||
► Good mechanical and environmental characteristics; | ||||||||
► Flame retardant characteristics meet the requirements of relevant standards; | ||||||||
► The mechanical characteristics of jacket meet the requirements of relevant standards; | ||||||||
► Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission; | ||||||||
► Meet various requirements of market and clients | ||||||||
Application: | ||||||||
► Mainly used in wireless base station horizontal and vertical cabling | ||||||||
