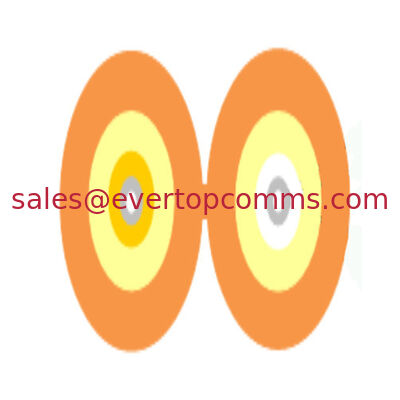

FTTH Flat Cable Multimode Orange Jacket Duplex 2 Core OM2 Fiber Optic Cable
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Optic Cable | Number Of Conductors: | 2 |
|---|---|---|---|
| Name: | FTTH Multimode Orange Jacket Duplex 2 Core OM2 Optical Fiber Cable | Jacket Material: | LSZH |
| Jacket Color: | Orange | Fiber Count: | 2 Core |
| Fiber Type: | OM2 | Operating Temperature: | -20°C-+60°C |
| Tight-buffered Fiber Color: | White & Yellow | Tight-buffered Fiber Material: | PVC |
| Strength Member: | Kevlar |
Product Description
FTTH Flat Cable multimode orange jacket Duplex 2 core OM2 optical fiber cable
The duplex indoor opticai fiber cables are used only within buildings and must have a flame-retardant jacket to fit this purpose.They may be deployed in duct (conduit) or cable tray. When routing a cable within a building, you will also need to factor in fire prevention requirements.
These requirements differ per country and region of the world.
Fiber Parameters: | ||||||||
No. | Item | Unit | Specification | |||||
50/125 | ||||||||
1 | Core Diameter | μm | 50.0±2.5 | |||||
2 | Cladding Diameter | μm | 124.8±1.0 | |||||
3 | Cladding Non-Circularity | % | ≤1.0 | |||||
4 | Core-Cladding Concentricity Error | μm | ≤1.5 | |||||
5 | Coating Diameter | μm | 245±7 | |||||
6 | Coating Non-Circularity | % | ≤6.0 | |||||
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |||||
8 | Bandwidth(min.) | 850nm | MHz·km | 500 | ||||
9 | 1300nm | MHz·km | 500 | |||||
10 | Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ||||
1300nm | dB/km | ≤1.0 | ||||||
Cable Parameters: | ||||
Items | Specifications | |||
Fiber Count | 2 | |||
Optical Fiber | Dimension | 245±5μm | ||
Color | Natural | |||
Tight-buffered Fiber | Dimension | 850±50μm | ||
Material | PVC | |||
Color | White & Yellow | |||
Strength Member | Kevlar | |||
Material | Steel | |||
Outer Jacket | Dimension | (2.850±0.10)mm×(5.80±0.20)mm | ||
Material | LSZH | |||
Color | Orange | |||
Mechanical and Environmental Characteristics: | ||||
Items | Unite | Specifications | ||
Tension(Long Term) | N | 80 | ||
Tension(Short Term) | N | 150 | ||
Crush(Long Term) | N/10cm | 100 | ||
Crush(Short Term) | N/10cm | 500 | ||
Min. Bend Radius(Dynamic) | mm | 20D | ||
Min. Bend Radius(Static) | mm | 10D | ||
Installation Temperature | ℃ | -10～+50 | ||
Operating Temperature | ℃ | -20～+60 | ||
Storage Temperature | ℃ | -20～+60 | ||
Applications:
- Office/commercial buiiding
- optical test equipment
- communication base
- residentional areas
