FTTH Armored Single Mode Data Communication High Precision Fiber optic Cable
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Jacket Color: | Black | Jacket Material: | LSZH |
|---|---|---|---|
| Name: | FTTH 2-216 Core Black Jacket GYXTW Outdoor Fiber Optic Cable | Application: | Outdoor |
| Fiber Count: | 2-216 Core | Operating Temperature: | -40°-70°C |
| Type: | GYXTW |
Product Description

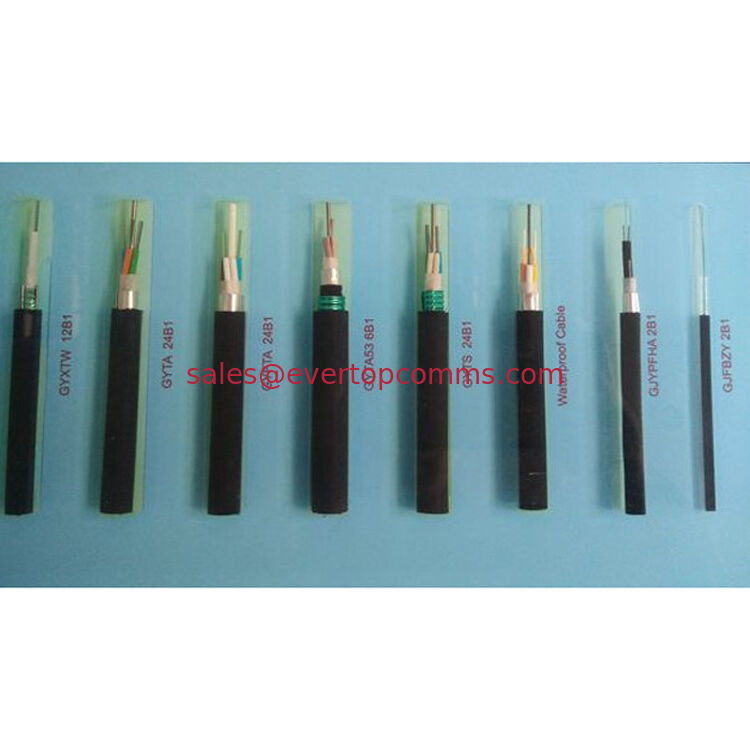

FTTH 2-216 core Black Jacket GYXTW Outdoor fiber optic cable
GYXTW Armored Uni-Tube Single Jacket/Single Armored cable is designed with the flexibility and versatility required for today's most demanding installations, including direct buried. The metallic armor is used when mechanical protection is desired.
Fiber Parameters: | ||||||||
No. | Items | Unit | Specification | |||||
G.657A1 | ||||||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 | ||||
1550nm | μm | 10.1±0.5 | ||||||
2 | Cladding Diameter | μm | 124.8±0.7 | |||||
3 | Cladding Non-Circularity | % | ≤0.7 | |||||
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |||||
5 | Coating Diameter | μm | 245±5 | |||||
6 | Coating Non-Circularity | % | ≤6.0 | |||||
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |||||
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |||||
9 | 1310nm | dB/km | ≤0.4 | |||||
1550nm | dB/km | ≤0.3 | ||||||
10 | 1turn×10mm radius @1550nm | dB | ≤0.75 | |||||
1turn×10mm radius @1625nm | dB | ≤1.5 | ||||||
Cable Parameters: | ||||
Items | Specifications | |||
Fiber Count | 1 | |||
Colored Coating Fiber | Dimension | 250µm±15µm | ||
Color | Natural | |||
Self-Supporting Member | Dimension | 1.2mm | ||
Material | Galvanized Steel Wire | |||
Color | Natural | |||
Strength Member | Diameter | 0.5mm | ||
Material | Phosphatized Steel Wire | |||
PSP | Diameter | 4.1 mm±0.1mm | ||
Thickness | 0.45mm | |||
Outer Jacket | Dimension | 5.2±0.2mm×2.1±0.1mm | ||
Material | LSZH | |||
Color | Black | |||
Mechanical and Environmental Characteristics: | ||||
Items | Unit | Specifications | ||
Tension(Long Term) | N | 500 | ||
Tension(Short Term) | N | 1000 | ||
Crush(Long Term) | N/10cm | 1000 | ||
Crush(Short Term) | N/10cm | 2200 | ||
Min. Bend Radius(Dynamic) | mm | 20D | ||
Min. Bend Radius(Static) | mm | 10D | ||
Installation Temperature | ℃ | -20～+60 | ||
Operating Temperature | ℃ | -40～+70 | ||
Storage Temperature | ℃ | -40～+70 | ||
Applications:
- Interbuilding voice or data communicaiton
- Installed in duct,underground conduit
