Horizontal Fiber Optic Splice Box Joint Box F010 12core 24 Coe 36 Core 48 Core 72 Core 96core
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Fiber Opitc Splice Closure | Use: | Optical Fiber Splice Place |
|---|---|---|---|
| Warranty Time: | 1 Year | Network: | Wired LAN, Ip, Gprs, 4 G, Gsm, 3 G |
| Product Name: | Fiber Optic Splice Closure | Color: | Black |
| Material: | PP | Ports: | 2 In 2 Out |
| Package: | Carton | MOQ: | 50 |
optical splice closures are used to distribute, splice, and
store the outdoor optical cables which enter and exit from
the ends of the closure. There are two connection ways:
direct connection and splitting connection. They are
applicable to situations such as overhead, man-well of
pipeline, embedded situation etc. Comparing with terminal
box, the closure requires much stricter requirement of seal.
Features
The closure casing is made of quality engineering PC plastics, and of good
performance of anti-erosion against acid and alkali salt, anti-aging, as
well as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resisting
wild environment and intensive climate changes and serious working
environment. The protection grade reaches IP68.

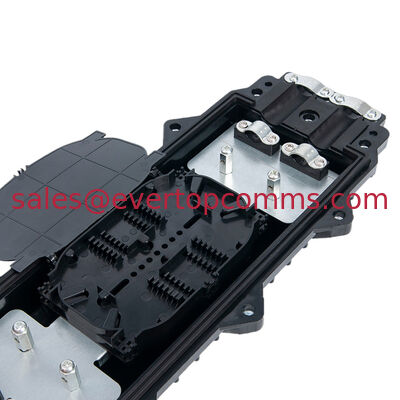

The splice trays inside the closure are turn-able like booklets, and have
adequate curvature radius and space for winding optical fiber to make
sure the curvature radius for optical winding 40mm.Each optical cable
and fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.
The elastic rubber seal rings inside the closure are of good sealing and
sweat-proof performance.
Configuration
Material Size
Max Capacity
Diameter of Cable
Weight Number of Cable Entrance/Exit
PC
A*B*C(mm)
430*190*110
Splice 96 Fibers
(4trays,24 core/tray)
A : φ 23mm
B: φ 23mm
2.35kg
2 in 2 out
Applications
Used for direct transmission of outdoor cable in aerial,duct and direct buried application.
Used for branching connection and protect the joint.

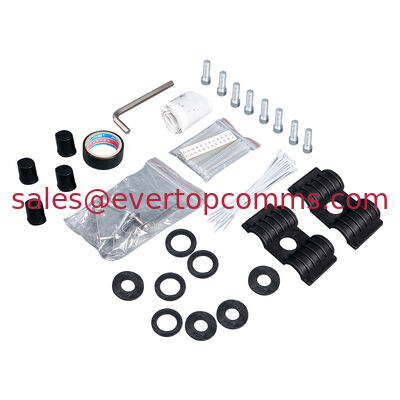

Standard Accessories
Metal spanner:1pcs
Metal hanger :2pcs
Sealing rubber strip:1pcs
Insulating tape:1pcs
Cable tie:3mm*110mm 8pcs
Plastic plug:4pcs
Rubber waterproof strip:2pcs
Heat-shrink sleeve:1.2mm*60mm 96pcs
