Photoelectric Hybrid Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Photoelectric Hybrid Cable

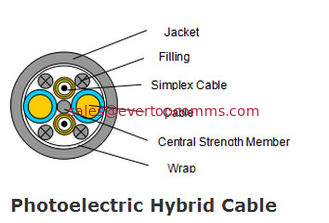

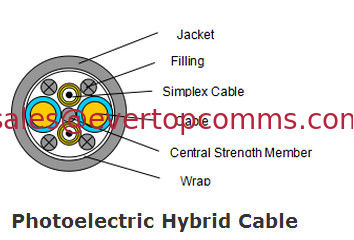

Element: simplex cable and cable. Simplex cable, cable and fillers are stranded around the central strength member, the cable is completed with outer jacket.
Characteristic:
Excellent strippability of tight buffer fiber
Diameter and bending radius small, It can installation freely in narrow room, have both optical signal transmission and electricity transmission
Geometrical Characteristics
|
Cable Type |
2 |
|
Cable Diameter(mm) |
8.0 |
|
Cable Weight(kg/km) |
60 |
|
TBF Diameter(μm) |
900±50 |
Mechanical Characteristics
|
Max Load(N) |
Long Term |
200 |
|
Short Term |
600 |
|
|
Bending Radius(CM) |
Dynamic |
20×D (D: Cable Diameter) |
|
Static |
10×D (D: Cable Diameter) |
Fiber
|
Fiber Type(core/cladding dimension) |
8.3/125, 50/125, 62.5/125 |
Transmission Characteristics
|
|
SMF |
50/125 |
62.5/125 |
|
|
1310/1550(nm) |
850/1300(nm) |
850/1300(nm) |
|
Max Attenuation(dB/km) |
0.45/0.30 |
3.5/1.5 |
3.5/1.5 |
|
AVG. Attenuation(dB/km) |
0.40/0.25 |
3.0/1.0 |
3.0/1.0 |
|
Min Bandwidth(MHz·km) |
—— |
400/400 |
160/500 |
Environmental Characteristics
|
Storage Operating Temperature |
-20℃～+60℃ |
