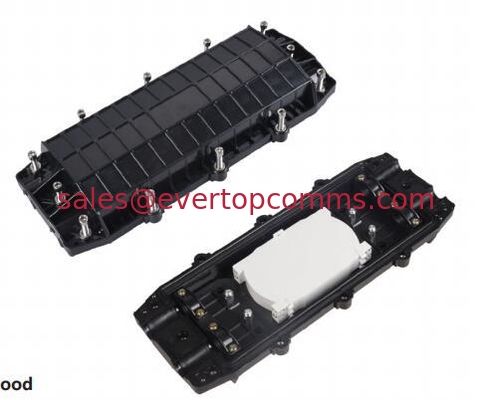

96 core fiber optic splice joint closure in-line horizontal ETC-F011 2 in 2 out
Detailed Product Description
Description
optical splice closures are used to distribute, splice, and
store the outdoor optical cables which enter and exit from
the ends of the closure. There are two connection ways:
direct connection and splitting connection. They are
applicable to situations such as overhead, man-well of
pipeline, embedded situation etc. Comparing with terminal
box, the closure requires much stricter requirement of seal.
Features
The closure casing is made of quality engineering ABS,PP plastics, and of
good performance of anti-erosion against acid and alkali salt, anti-aging,
as well as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resisting
wild environment and intensive climate changes and serious working
environment. The protection grade reaches IP68.
The splice trays inside the closure are turn-able like booklets, and have
adequate curvature radius and space for winding optical fiber to make
sure the curvature radius for optical winding 40mm.Each optical cable
and fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.
The elastic rubber seal rings inside the closure are of good sealing and
sweat-proof performance.
