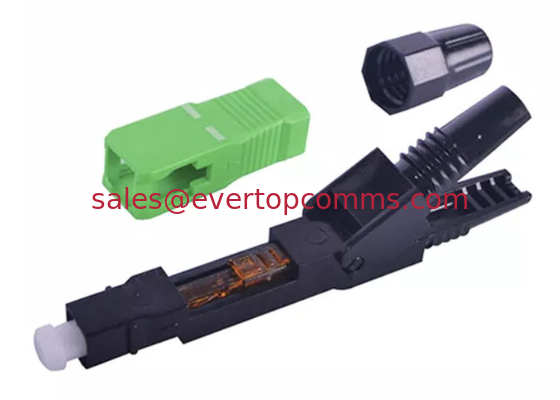

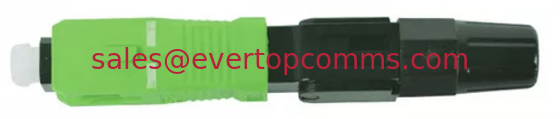

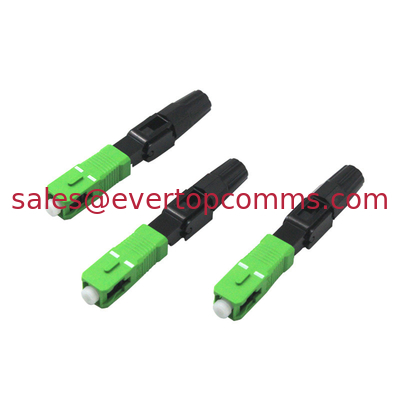

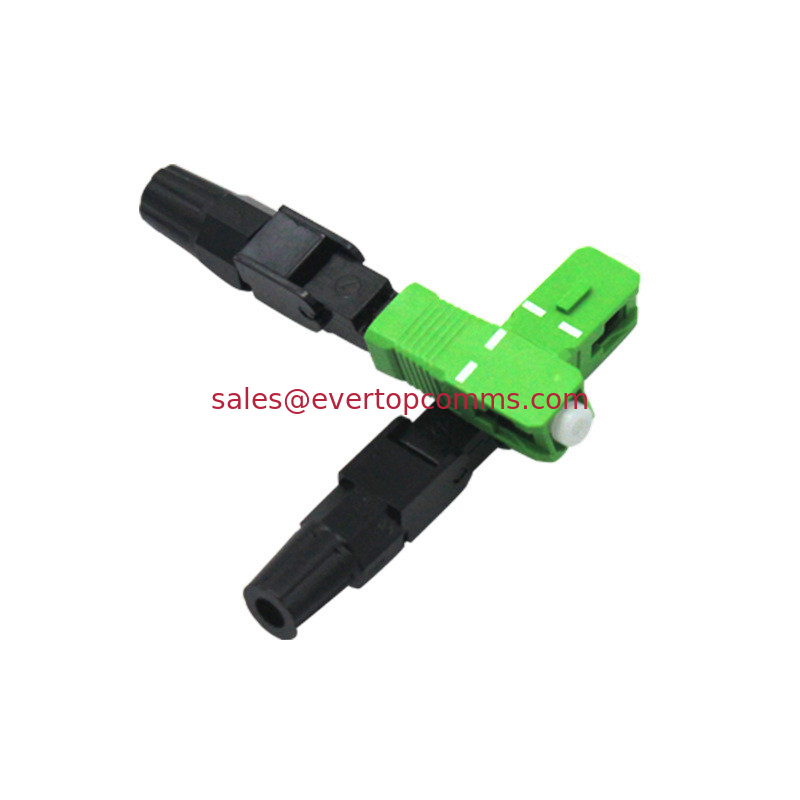

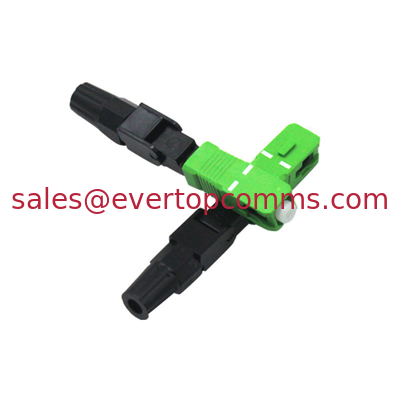

SC/APC fiber optic fast connector

FIC-03 FIELD INSTALLABLE CONNECTOR

Field installable connectors can be assembled easily and quickly in the field with no epoxy, heat cure devices or special tooling to facilitate the termination of the fibre. To reduce material waste, the drop cable connector can be removed and reterminated using the same connector up to five times.

The fiber mating alignment and gripping technology includes a factory-polished zirconia ferrule, which improves durability and provides a reliable, low-loss fiber termination.

A tool kit can be ordered separately. It contains Tripping and cutting tool, cleaver, and a cleaning paper.

Feature

1. Pre-terminated fiber in the ferrule, no epoxy, curing and polishing.

2. Stable optical performance and reliable enviromental performance.

3. Cost effective and user friendly, termination time with Tripping and cutting tool

4. Low cost redesign,competitive price.

5. connector size: 55mmx8.9mmx7mm

6. Thread joints for cable fixing.

Specification

Insertion loss	Main≤0.25dB Max.≤0.35dB
Return loss	UPC≥45dB	APC≥50dB
Cable	3.0X2.0mm Drop cable
Operating temp.	-40℃～+70℃
Storage temp.	-40℃～+80℃
