ETC-GXF53 serial Optical Cross Cabinet

China ETC-GXF53 serial Optical Cross Cabinet supplier
ETC-GXF53 serial Optical Cross Cabinet supplier ETC-GXF53 serial Optical Cross Cabinet supplier

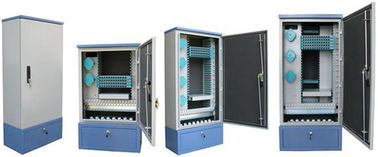

Large Image :  ETC-GXF53 serial Optical Cross Cabinet

Product Details:

Place of Origin: Ningbo of China
Brand Name: EVERTOPCOMMS
Model Number: ETC-GXF53
Contact Now
Detailed Product Description

ETC-GXF53 serial Optical Cross Cabinet





Features
·

The interface device used in connecting backbone cables and distributing cables
· It is made from stainless steel or electrostatics plastic-spray surface, anti-corrosion, suitable for ground or aerial installation.
·

The area for fixing, splicing and wiring is classified clearly, easy for installation and optical cable identification


Environment condition
· Environmental temperature: -25 ~+60
· Relative humidity: <95% (when the temperature is below 40
·

Atmospheric pressure: 70~106KPa


Main technical specification
· Insertion loss: 1.31,1.55um LD lamp-house. SM≤0.18dB MM≤0.30dB
· Return Loss: 1.31,1.55um LD lamp-house. SM PC≥45dB UPC≥50dB APC≥60dB
·

Insulation resistance:≥2×104MΩ／500VDC
· Voltage-resistance strength: non-puncture no arc-over under 3KVDC／1min


Ordering information

Type

Size (mm)(W×D×H)

Max. Capacity of one splice tray (fibers)

Max. Capacity (fibers)

ETC-GXF53-144

530×290×700

12

144

ETC-GXF53-288

765×340×1515

12

288

ETC-GXF53-576

765×340×1705

24

576
For FTTx application, splitter module can be installed
