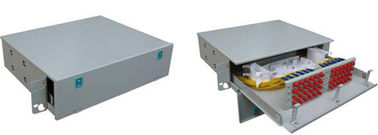

Rack Mounting Enclosure ETC-4824

China Rack Mounting Enclosure ETC-4824 supplier
Rack Mounting Enclosure ETC-4824 supplier Rack Mounting Enclosure ETC-4824 supplier

Large Image :  Rack Mounting Enclosure ETC-4824

Product Details:

Place of Origin: Ningbo of China
Brand Name: EVERTOPCOMMS
Model Number: ETC-4824
Contact Now
Detailed Product Description

General Specification

ETC-4824 Rack Mounting Enclosure is designed as drawer type which could be easily pulled in and pulled out for convenient operation. It is made of quality metal for the use of fiber splicing and distribution. The installation could be done on the frame or rack directly while no need to take the whole box down but only need to take down the top cover for operation and maintenance.



Features

· 19’ standard rack design with static-spray, nice looking;
·

can be used for ribbon & bunch fiber cables

· can install FC, SC, ST or LC or duplex LC adapters according to users’ actual requirement
· clear fiber route, pigtails could be winded and stored on the tray
· symmetrical side panels, unique design of inlaid structure for fibers, which makes the inlet of fibers more flexible and convenient.
· the depth of installation could be adjusted, therefore easy and flexible installation and maintenance.


Ordering Information

Model No.

Dimension (mm)

Height (U)

Max. capacity (fibers)

ETC-4824

486×348×70

1.6

24

486×348×110

2.5

48

486x348x150

3.4

72

486x348x190

4.3

96

Accessories

Accessories provided with GPX-4824: heat shrinkable protective sleeve, Nylon tie, Labeling paper, Insulation tape
Accessories needs to be ordered in addition: Adapter, Pigtail, Patch cord.
