Embedded-type SCAPC YM-001

I'm Online Chat Now

Embedded-type SCAPC YM-001

China Embedded-type SCAPC YM-001 supplier

Large Image :  Embedded-type SCAPC YM-001

Product Details:

Place of Origin: china
Model Number: Embedded-type SCAPC
Contact Now
Detailed Product Description

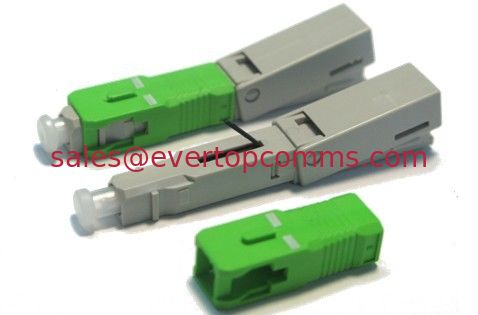

Embedded-type SC/APC YM001

1 Products
Fast fiber connector is used for field-assembled optical fiber connector, widely used in fiber to the home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900 microns, 3 mm and the introduction of cable 8 font type, for connecting other devices and fiber optic panels, the installation process takes about two minutes, the connector during the installation process does not require any adhesive and curing process.

2 Specification

Project

Embedded-type (APC)

Using fiber optic cable

2.0mmx3.0mm

Plug Type

SC/APC

Fiber diameter

0.125mm

Fiber Mode

Single

Insertion Loss

<0.5dB (typical 0.2dB)

Return Loss

>55dB

Tensile strength

>20N

Temperature

-40℃—+70℃

Temperature cycling

IL<0.3dB,RL<5dB
