Embedded-type SC/PC connector YM-001

I'm Online Chat Now

Embedded-type SC/PC connector YM-001

China Embedded-type SC/PC connector YM-001 supplier

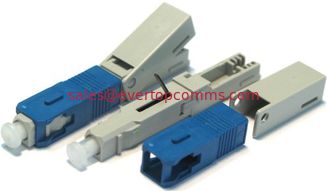

Large Image :  Embedded-type SC/PC connector YM-001

Product Details:

Place of Origin: china
Model Number: Embedded-type SC/PC
Contact Now
Detailed Product Description



                                                               Embedded-type  SC/PC connector ETC-001

1 Products
Fast fiber connector is used for field-assembled optical fiber connector, widely used in fiber to the home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900 microns, 3 mm and the introduction of cable 8 font type, for connecting other devices and fiber optic panels, the installation process takes about two minutes, the connector during the installation process does not require any adhesive and curing process.

2 Specification

Project

Embedded-type (PC)

Using fiber optic cable

2.0mmx3.0mm

Plug Type

SC/PC

Fiber diameter

0.125mm

Fiber Mode

Single

Insertion Loss

<0.5dB (typical 0.2dB)

Return Loss

>50dB

Tensile strength

>20N

Temperature

-40℃—+70℃

Temperature cycling

IL<0.3dB,RL<5dB
