fiber optic fusion splicer ETC-KL-350E

I'm Online Chat Now

fiber optic fusion splicer ETC-KL-350E

China fiber optic fusion splicer ETC-KL-350E supplier

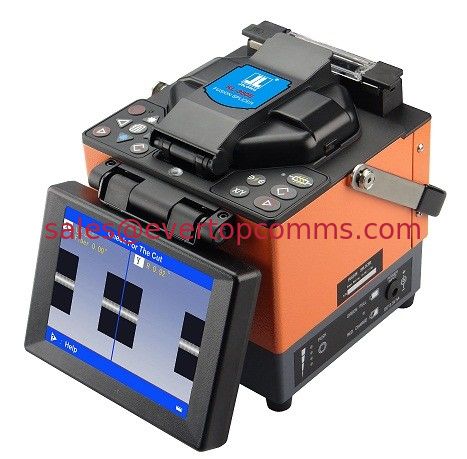

Large Image :  fiber optic fusion splicer ETC-KL-350E

Product Details:

Place of Origin: Ningbo of China
Brand Name: EVERTOPCOMMS
Model Number: fiber optic fusion splicer ETC-KL-350E

Payment & Shipping Terms:

Payment Terms: TT/LC/Western Union
Contact Now
Detailed Product Description

fiber optic fusion splicer ETC-KL-350E

fiber optic fusion splicer ETC-KL-350E



Applicable fibers

SM  MM  DS  NZDS

Fiber diameter

Cladding diameter:80-150μm; Coating diameter:100-1000μm

Fiber count

Single

Fiber cleaved length

8-16mm (Coating diameter:250μm)

Actual average splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Typical splicing time

Typical 9 sec (standard SM fiber)

Return loss

>60dB

Splicing mode

Auto Calibrate Normal Special

Fiber aligning method

Meticulous,Core,Clad,Manual

Splicing program

53 (templet), 40(user)

Tube heating program

9 (templet),24(user)

Tube typical heating time

Typical 30 sec

Protection sleeve length

60mm, 40mm

Storage of splice result

4000 results, 20 parameter per result

Fiber image magnification

300X (X or Y view),150X  (X and Y view)

Battery capacity

Typical 400 cycles (splice/tube heat with inner Li-battery)

Monitor

5.7 inch TFT color LCD monitor

Tension test

2N

Electrode life

2500

Terminal

USB

Power supply

AC 100-240V with AC adapter DC13.5V  Inner Li-battery (7800mAH)

Operating condition

0-5000m above sea level, -10-50℃  Max wind velocity of 15m/s

Dimension

150mm(L)×150mm(W)×150mm(H)

Weight

2.55Kg excluding battery   3.05Kg including battery





Specefications

Model

KL-350E

KL-300T

KL-280G

KL-500E

KL-510E

Actual average splice loss

 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Splicing mode

 Auto,  Calibrate,  Normal,  Special

Fiber aligning method

 Meticulous, Core, Clad, Manual

Typical splicing time

 Typical 9 sec (standard SM fiber)

Tube typical heating time

 Typical 30 sec

Splicing program

53 (templet), 40(user)

Tube heating program

9 (templet),24(user)

Storage of splice result

4000 results, 20 parameter per result

Tension test

2N

Terminal

USB

Electrode life

2500

Fiber image magnification

300X (X or Y view),150X (X and Y view)

120X (X or Y view), 60X (X and Y view)

Monitor

5.7 inch color LCD monitor

3.5 inch color LCD monitor

Battery capacity (splice/tube heat)

Typical 400 cycles

Typical 300 cycles

Typical 150 cycles

Power supply (Inner Li-battery)

7800mAH

5200mAH

2600mAH

Power supply (AC)

AC 100-240V with AC adapter   DC 13.5V

Operating condition

0-5000m above sea level, -10-50℃  Max wind velocity of 15m/s

Dimension (L×W×H)

150×150×150 (mm)

125×105×113 (mm)

193×125×85 (mm)

Weight (including battery)

3.05Kg

1.3Kg

1.1Kg



Function Comparision of Jilong Fusion Splicer







Model

KL-350E

KL-300T

KL-280G

KL-500E

KL-510E

Display fiber cleaved angle

Display fiber offset angle

Display core & clad offset

Fiber angle limit

Air pressure auto compensation

Real-time arc calibration

Display inside temperature

Display ambient temperature

Display heater temperature

Display air pressure

Display battery voltage

Image turn over

Taper splice

Sleep

Auto shut down

Software upgrade via USB

Core-core & clad-clad alignment

PAS technology

X&Y display or X/Y single display

Auto check & display cleave angle and offset angle

Display fiber core & clad offset

5.7 inch color LCD

Software update via USB port

Up to 400 splice&heating cycles



The characteristics of KL-350E

Tech 1: Real-time & auto control of ARC power
This technology can detect & adjust the ARC power automatically during splice, for instance, if the ARC power is over strong it will reduce the power, if the ARC power isn’t strong enough it will increase the power. Mean while , this technology is able to monitor the fusion process and result, so the parameters of the ARC power can be optimized automatically during the splice, and will be applied to the next splice.

Tech 2: Low splice loss control technology
Fiber cleaving angle affect the splice loss in certain way, but this technology can reduce the impact of cleaving angle towards splice loss.

Tech 3: Auto compensation of low air pressure
Automatic air pressure compensation with working environment 0M-5000M, temperature -10 ~ 50 ℃, making splice not being affected by changes of the air pressure.
