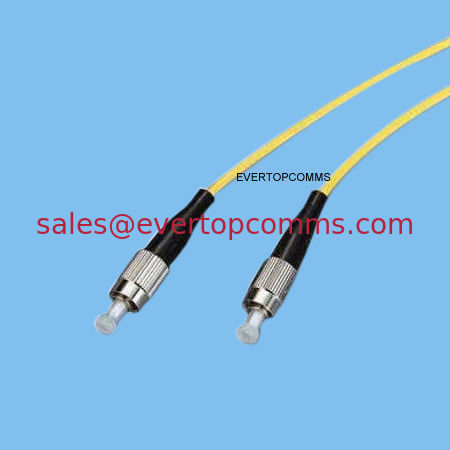

FC/UPC-FC/UPC Singlemode Simplex Patch Cord
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
|
The FC fiber optic cable is available in both singlemode and multimode versions, and is fully intermateable with NTT-FC products. Both singlemode and multimode versions FC fiber patch come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. These endface types allow for faster polishing, and low back reflection and optical loss,while ensuring maximum repeatability.
Features
---Low insertion and back reflection loss ---Good exchangeability ---Good durability ---High temperature stability ---Standard: Telcordia GR-326-CORE
Applications
-Telecommunication networks
-Data transmission networks -Computer networks (Gigabit Ethernet, SoNet, etc. ) -Cabling system -Interconnection of fiber optic transmission equipments -ODF of optical transmission systems -FTTX applications
Specifications
Fiber Type: OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG)
Connector Polishing Type: PC, UPC, APC Fiber Cable Jacket material: PVC/LSZH Standard color: Singlemode :Yellow color, Multimode :Orange color Cable strain relief (boot) O.D. : 0.9mm/1.8mm/2.0mm/3.0mm Compliant with JIS C-5973, IEC RoHS Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry. Parameter table
Insertion loss Singlemode: PC/UPC≤0.2dB APC≤0.2dB
Multimode PC/UPC≤0.3 dB
Return loss Singlemode PC/UPC≥50dB APC≥60 dB
Multimode PC/UPC≥35 dB
|
